KSB
Butterfly Valves
KSB butterfly valves offer a compact design, lightweight build, and fluid resistance—ideal for efficient pump system operation. With hydraulic optimization and easy automation, these versatile industrial valves deliver reliable performance across various applications.
KSB

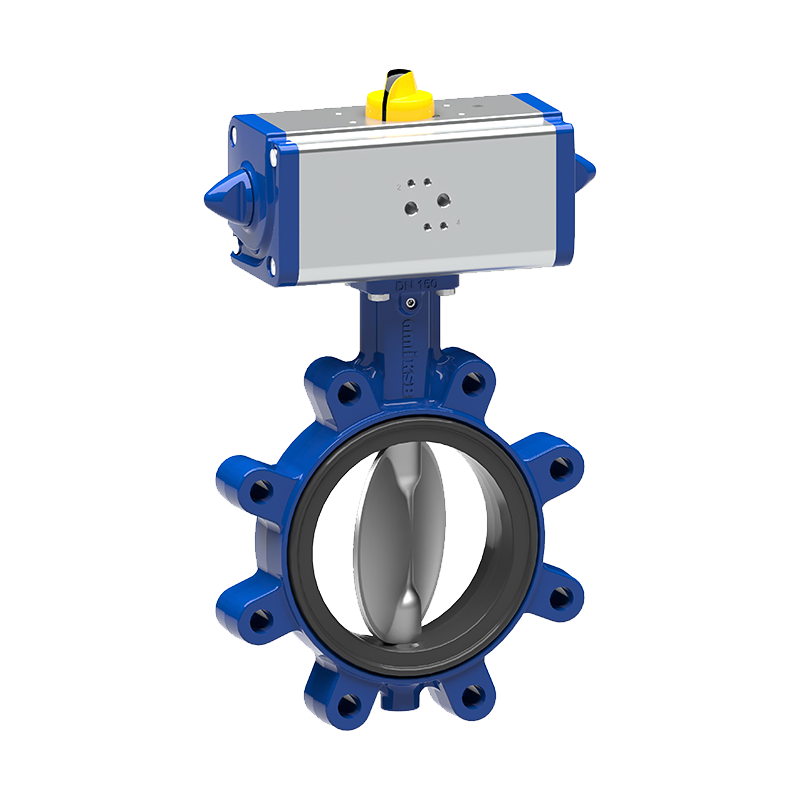

Isoria
APPLICATIONS
Cooling circuits, Seawater desalination/reverse osmosis, Flue gas desulphurization, Pulp & Paper industry, Washing plants, General irrigation systems, Shipbuilding, Pipelines and tank farms, Process engineering, Sugar industry, Pressure boosting, Water treatment
- Size Range: 5” to 40”
- Operating Pressure Range: 10-25 bar (ANSI 150-300# class)
- Body types: Wafter-type, Semi-lug, Full-lug, Flanged with Flat Faces
- Vacuum: down to -0.3 bar or -15 PSI
- Seat configurations: EPDM, Nitrile rubber, CSM, Viton, Others available upon request
- Actuation: Lever, Gearbox, Pneumatic, Electric or Hydraulic, with or without controls
FLUIDS HANDLED
Wash water, Seawater, Service water, Cooling Water, Fire-fighting water, Drinking water, Brackish water, River water, Lake Water, Groundwater, Abrasive fluids, Fluids containing mineral oils, Solids-laden fluids
KSB

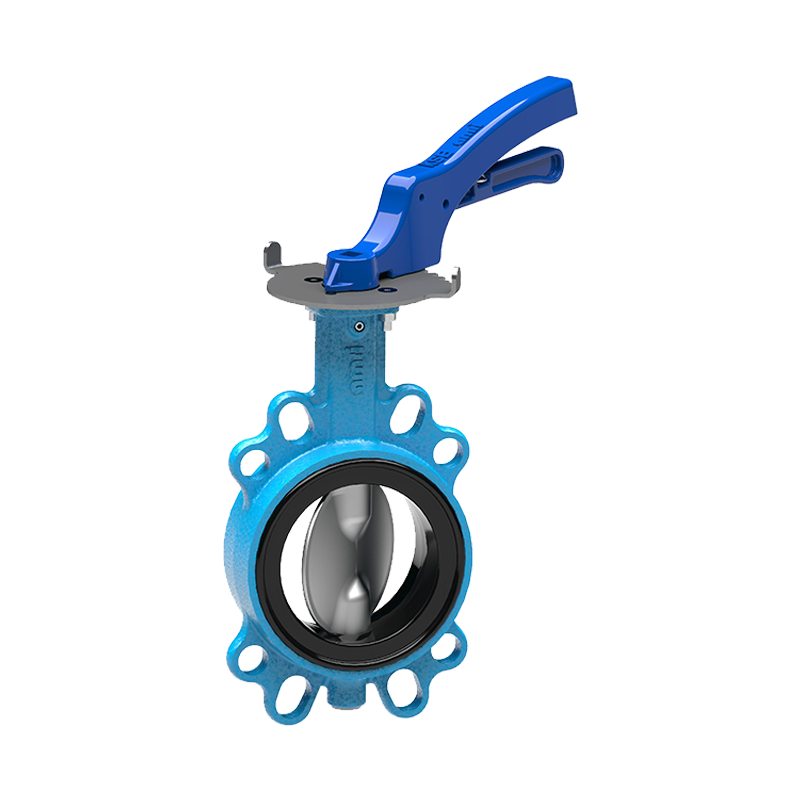

BOAX-B
APPLICATIONS
Spray irrigation systems, Domestic water supply, Water extraction, Hot-water heating systems, Air-conditioning, Washing plants, Paint shops, General irrigation systems, Swimming pools, Pressure boosting, Water treatment, Rainwater harvesting.
- Size Range: 1.5” – 40”
- Operating Pressure Range: 10 to 16 Bar, 145 to 232 PSI
- Body types: Semi-lug, Full-lug
- Seat configurations: EPDM, Nitrile
- Actuation: Lever, Gearbox, Pneumatic, Electric, with or without controls
FLUIDS HANDLED
Heating water, Cooling water, Drinking water, Wastewater without feces, Fluids containing mineral oils, oil.
KSB

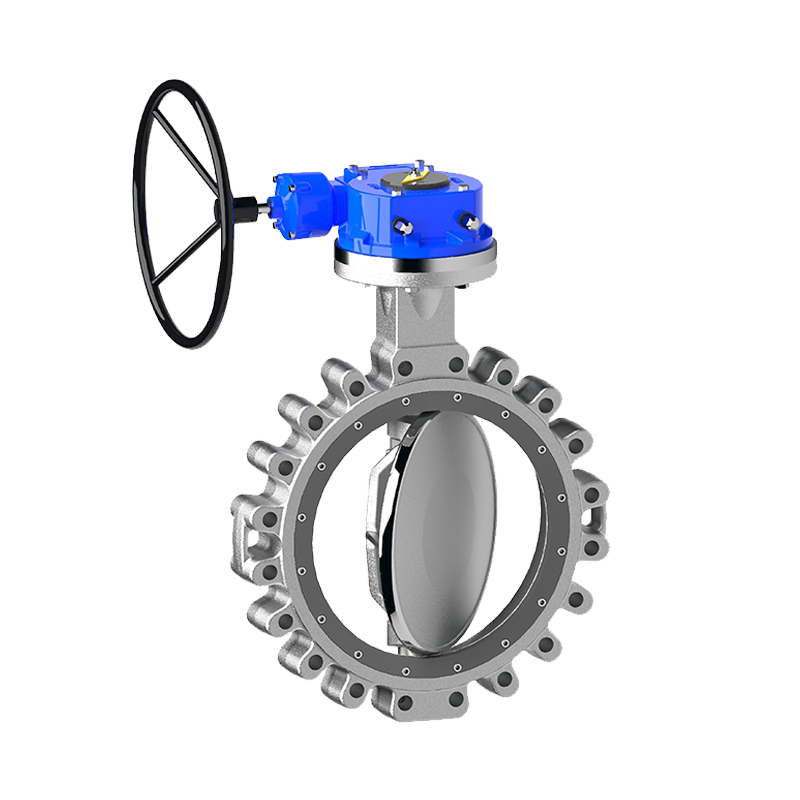

DANAÏS 150
APPLICATIONS
Hot-water heating systems, District heating, Chemical industry, Air-conditioning systems, Beverage industry and food industry, Paper industry / pulp industry, Petrochemical industry, Pharmaceutical industry, Shipbuilding, Mining, Pipelines and tank farms, Process engineering, Refinery, Sugar industry, Pressure boosting, Industrial recirculation systems, Low-pressure steam, Gas.
- Size Range: 2” to 48”
- Operating Pressure Range: 10-25 bar (ANSI 150-300# class)
- Body types: Wafer-type, Full-lug
- Seat configurations: PTFE and fire-safe PTFE (API 607), FKM (Viton) and NBR (nitrile), Metal: stainless steel
- Actuation (version): Lever, Gearbox, Pneumatic, Electric, with or without controls
FLUIDS HANDLED
Fuels, Hot water, Hot water, Fluids containing mineral oils, Solids-laden fluids, Aggressive fluids, Heat transfer fluids / Oils, Corrosive fluids, Flammable fluids, Toxic fluids, Volatile fluids, Gas, Oil, Solids (ore, sand, gravel, ash), Steam, Vacuum.
KSB

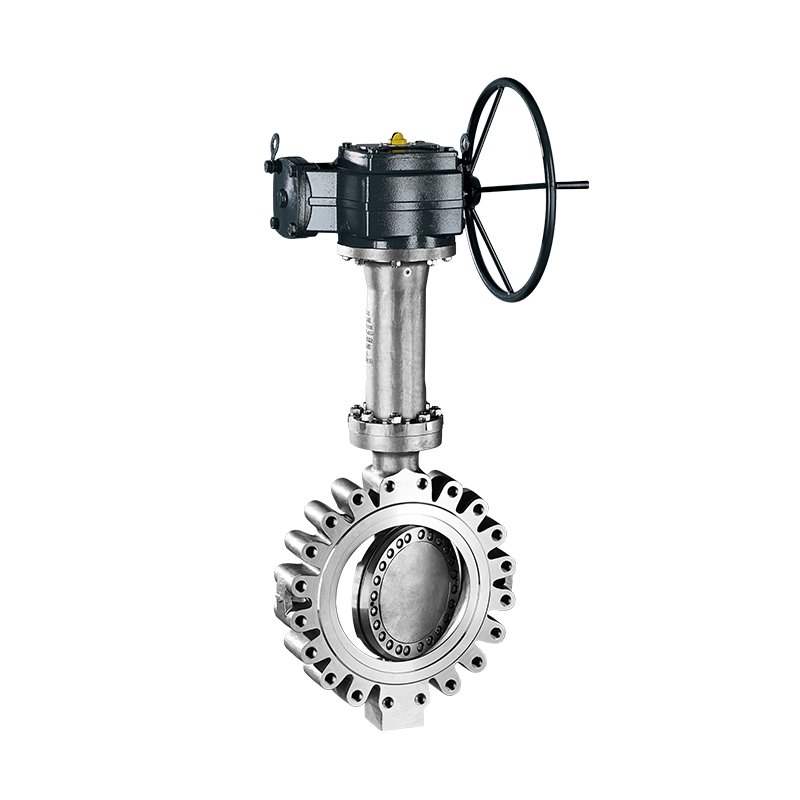

TRIODIS
APPLICATIONS
Mining, Chemical industry, Petrochemical industry, Liquefied natural gas process, Pressure boosting, Shipbuilding, Pipelines and tank farms, Process engineering, Gas tanks, Industrial recirculation systems, Nuclear power stations, Air-conditioning systems, Fossil-fueled power stations, Paper industry / pulp industry, Hot-water heating systems.
- Size Range: 3” to 60”
- Pressure classes: Class 150, 300, 600, 900
- Body types: Wafer-type, Full-lug, Flanged, Butt weld side entry
- Vacuum: 0 bar absolute
- Seal configurations: Solid seal : S31803, Inconel 625, Plasto-metal seal: S31803 + PCTFE, Inconel 625 + PCTFE, Flexible: Copper, Nickel, SS316L
- Actuation (version): Lever, Gearbox, Pneumatic, Electric, with or without controls
FLUIDS HANDLED
Gas, Liquefied gas, Liquefied natural gas, Aggressive fluids, Steam, Solids-laden fluids, Flammable fluids, Hot water, Corrosive fluids, Fuels, Volatile fluids, Fluids containing mineral oils, Oil, Thermal oil, Polymerizing/crystallizing fluids, Radioactive fluids, Vacuum.
KSB

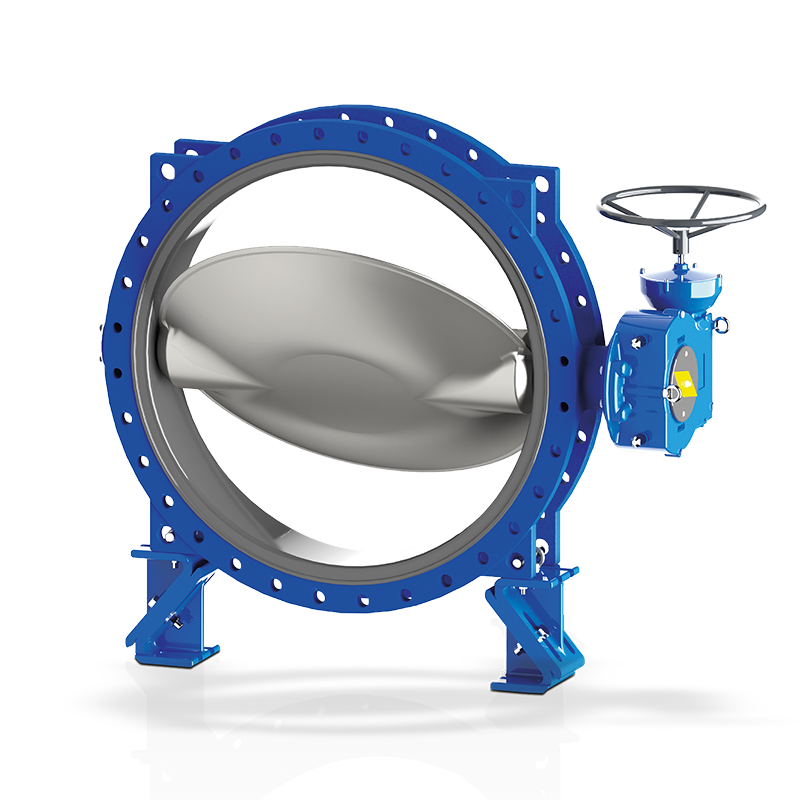

MAMMOUTH
APPLICATIONS
Water supply systems, Water transport, Cooling circuits, Seawater desalination/reverse osmosis, Flue gas desulphurization, General irrigation systems, Shipbuilding, Pipelines and tank farms, Water treatment.
- Size Range: 36” – 160”
- Max Operating Pressure: 363 psi
- Body types: Flanged
- Seat configurations (Liner): EPDM, Nitril
- Actuation (version): Gearbox with or without Manual override, Electric, Pneumatic, Hydraulic
FLUIDS HANDLED
Service water, Seawater, Cooling water, Drinking water, River water, lake water and groundwater, Radioactive fluids, Aggressive fluids.
