magnetic-drive pumps
Magnatex magnetic drive pumps prove to be a reliable and efficient option for applications with medium-flow and medium to high head requirements. The pumps adhere to ANSI B73.3 dimensions on the process side. Additionally, Magnatex pumps offer sub-ANSI sizes tailored for more efficient handling of lower flow applications. These cost-effective pumps from Magnatex deliver top-notch performance, providing increased efficiency with reduced horsepower and a lower overall cost of ownership.
magnatex

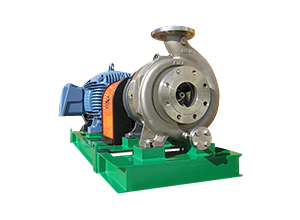

maxp
The MAXP Series pumps are meticulously crafted to align with the dimensional standards of ANSI B73.3. Renowned for their robustness, these pumps prove to be well-suited for demanding tasks in the chemical and petrochemical industries.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Straddle-mounted inner magnet system with bearings on both sides of the magnet – this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
- Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
- Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 5% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
- Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
- Special high-temperature construction is available to handle up to 800°F
- Options for leak detection are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals
- Suitable for use with edible hot oil fluids
materials of construction
- 304 SS
- 316 SS
- Duplex Stainless Steel
- Alloy 20
- Alloy B&C
magnatex

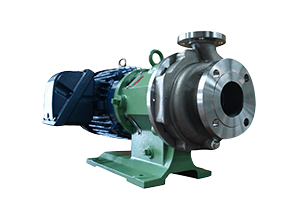

MAG-DRIVE MPL
The MPL Series pumps, known for their close-coupled and compact design, represent a reliable and efficient option for medium to high head applications. The MPL pump’s process side adheres to ANSI B73.3 dimensions. Magnatex pumps, offering affordability and high performance, ensure increased efficiency with lower initial costs, reduced horsepower, and a diminished total cost of ownership.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Optional SiC-X bearing system for enhanced dry running capability
- Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors’ typical cantilevered, overhung designs
- Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
- Close-coupled configuration eliminates coupling and motor alignment issues
- Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
- Optional high temperature construction to handle up to 660°F
- Optional baffled rear casing design for enhanced solids handling
- Large internal flow path handles solids: 1% at 500µ; 5% at 100µ
materials of construction
- 316SS
- 304SS
- Alloy 20
- Alloy B&C
- Optional high-pressure models for suction conditions to 5,000 psi and more
magnatex
MAG-DRIVE MP
The MPL Series pumps, known for their close-coupled and compact design, represent a reliable and efficient option for medium to high head applications. The MPL pump’s process side adheres to ANSI B73.3 dimensions. Magnatex pumps, offering affordability and high performance, ensure increased efficiency with lower initial costs, reduced horsepower, and a diminished total cost of ownership.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Standard SiC-X bearing system for enhanced dry running capability
- Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors typical cantilevered, overhung designs
- Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
- Large internal flow path handles solids: 1% at 500µ 5% at 100µ.
- Close-coupled configuration eliminates coupling and motor alignment issues.
- Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
- Optional high-temperature construction to handle up to 660°F without cooling liquid
materials of construction
- 316SS
- Alloy 20
- Alloy B&C
- Optional high-pressure models for suction conditions to 5,000 psi and more
magnatex

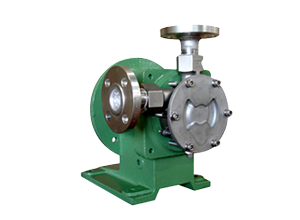

MPT
Regenerative turbine pump, low npsh, low flow-high head
The MPT Series comprises magnetically driven, sealless, regenerative turbine vane pumps, uniquely crafted for applications requiring low NPSH and low flow at high heads. Unlike the MP Series, the MPT Series adopts close-coupled construction but distinguishes itself by incorporating a regenerative turbine vane impeller. This innovative design enhances pump hydraulics, particularly at low flow rates and under conditions with low NPSHa.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Standard SiC-X bearing system for enhanced dry running capability
- Straddle-mounted, inner magnet system, with bearings on both sides of the magnet, which reduces shaft and bearing loads when compared to our competitors’ overhung, cantilevered inner magnet designs
- Slip-fit construction that allows easy on-site maintenance, with no special tools or fixtures required
- Close coupled configuration eliminates coupling and motor alignment issues
- Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
- Excellent for pumping entrained gases
- Excellent for low NPSH applications
materials of construction
- 316 SS
magnatex

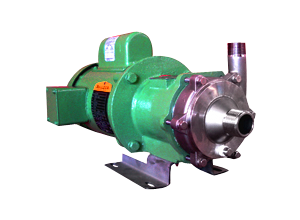

MMP
Magnetic Drive Sealless Pump
The MMP Series encompasses heavy-duty magnetically driven, sealless centrifugal pumps, featuring advanced SiC-X bearing materials ideal for low-flow applications. These close-coupled pumps share construction similarities with the MPL/MP Series, except for the stationary shaft and male NPT suction/discharge ports, with optional flanges also offered.
All Magnatex pumps and spare parts come with a 1-year unconditional warranty on materials and workmanship.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Straddle-mounted inner magnet system with bearings on both sides of the magnet – this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
- Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
- Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 5% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
- Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
- Several dual containment systems are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals
materials of construction
- 316 SS
- Ceramic or Stainless Steel Shaft Option
- Optional high-pressure models for suction conditions to 2,500 psi and more
magnatex
mep
Magnetic Drive Sealless Polypropylene Pumps
Magnetic drive, sealless, medium-duty, polypropylene thermoplastic pumps, designed for chemical transfer applications. The straightforward construction ensures an economical initial cost and facilitates easy maintenance. The sealless design contributes to the prevention of “Reportable Release” issues.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Straddle-mounted inner magnet system with bearings on both sides of the magnet – this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
- Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
- Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 8% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
- Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
- Special high-temperature construction is available to handle up to 800°F
- Several dual containment systems are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals
materials of construction
- GF Polypropylene
magnatex

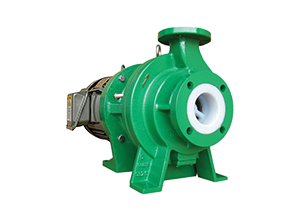

MTA
ANSI MAGNETIC DRIVE PFA LINED PUMPS
The Magnatex/Texel MTA Series showcases sealless, magnetic-drive pumps with a transfer-molded PFA lining that is mechanically attached, providing a thickness and uniformity surpassing our competitors’ roto-molded linings. These pumps are well-suited for a wide range of industrial chemical applications, including high-purity and elevated-temperature scenarios, boasting numerous superior features compared to competitors. Additionally, the MTA Series pumps adhere to ANSI B73.3 Standards, and their sealless design aids in the prevention of “Reportable Release” issues.
BENEFITS
- All Magnatex pumps and spare parts come with a 1-year unconditional warranty on materials and workmanship.
- Transfer-compression molding allows positive, interlocking casing linings 5-6 mm thick that stay in place; ideal for vacuum and higher temperature applications.
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Straddle-mounted inner magnet system with bearings on both sides of the magnet – this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
- Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
- Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 8% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
- Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
- Special high-temperature construction is available to handle up to 800°F
- Several dual containment systems are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals
materials of construction
- PFA Lined
magnatex

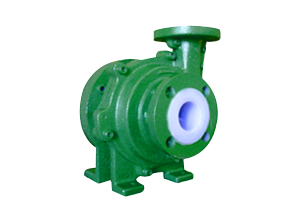

ME
The ME Series sub-ANSI pumps from Magnatex®/Texel® stand out as reliable, durable, and replaceable liner magnetic drive pumps. Tailored for low to medium flow in corrosive fluid applications, these pumps offer a maintenance-free operational lifetime with both low initial and total cost of ownership. The replaceable liners simplify and reduce repair costs without the need for special tooling. Additionally, the sealless design aids in preventing “Reportable Release” issues.
BENEFITS
- Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
- No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
- Straddle-mounted inner magnet system with bearings on both sides of the magnet – this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
- Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
- Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 8% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
- Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
- Special high-temperature construction is available to handle up to 800°F
- Several dual containment systems are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals
materials of construction
- ETFE Lined
- PVDF Lined
