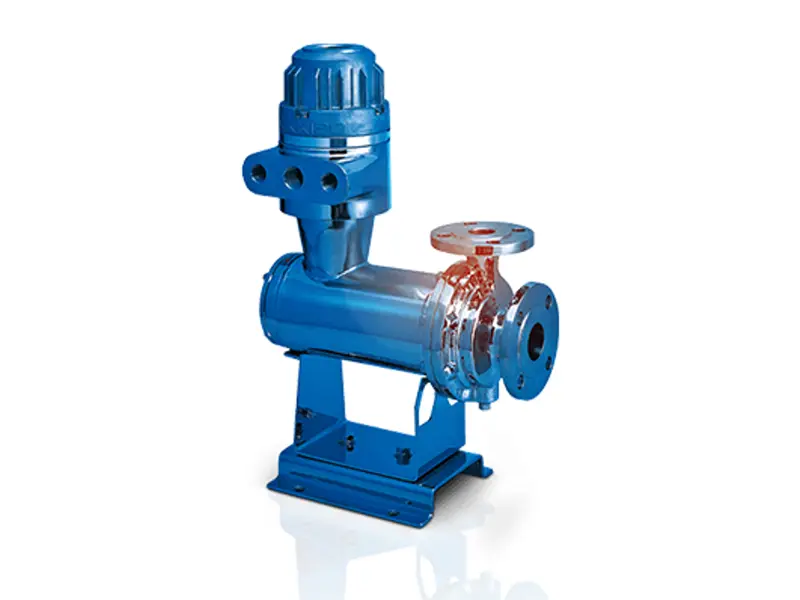

Canned Motor Pumps
The NIKKISO canned motor pump is specifically used in the chemical industry for transfer and circulation tasks. The pump and motor are integrated with the sealed leak-proof structure of the canned motor pump. NIKKISO has developed pumps under DIN EN ISO 2858, API 685, and other standards.
In use, the canned motor pump implements flow rates up to 1,000 m³/h and works with pressures up to 200 bar (at 50 Hz).
Features & benefits
- Designed to operate without leaks, ideal for handling high-temperature and hazardous liquids.
- Suited for diverse sectors including petrochemicals, petroleum refining, chemicals, electric power, food, semiconductor, and air conditioning industries.
- Sealless pumps with leak-proof construction with the pump and motor integrated into one housing.
- Leak-free
- Adaptable to a wide range of pressures and temperatures
- Easy to assemble and
- Compact, space-saving design
- Low vibration and noise
- Compliant with international and national standards
specifications
| Standard | ||
|---|---|---|
| Flow rate max. | 1000m³/h (4400 gpm) | |
| Head max. | 600m (1,970 ft) | |
| Pumped liquid | Fluid temperature range | -130℃ to +450℃ (-201 to 842°F) |
| Viscosity max. | 500mPa·s | |
| Design pressure | 20MPa (2900 psig) | |
| Casing Material |
|
|
| Motor power range | 0.75 to 250kW | |
| Ex-Protection | Various international explosion-protection（ATEX,IEC,CSA,TRCU, etc.) CE marking | |
