PEERLESS HORIZONTAL PUMPS
PEERLESS

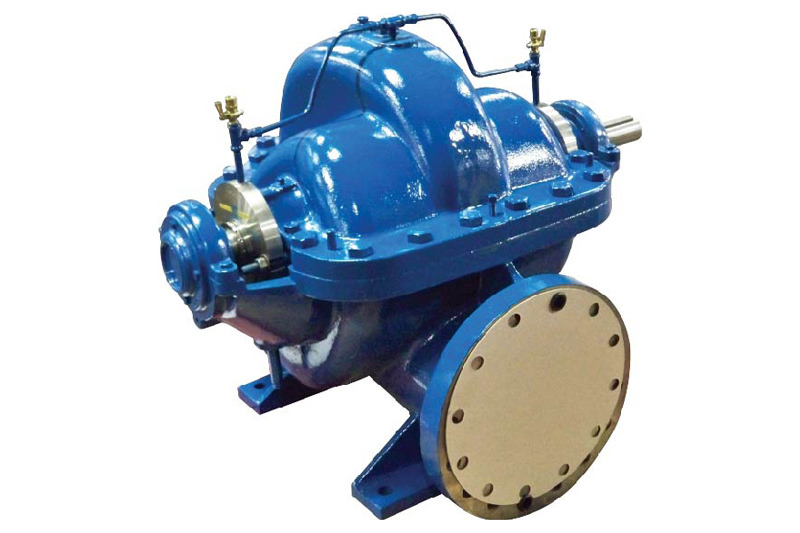

AE PUMP
The single-stage, double suction, horizontal split-case pump is available in 42 distinct hydraulic configurations and is offered in 25 different pump sizes. Discharge sizes vary from two to ten inches. The AE model boasts a broad array of hydraulic performance envelopes, numerous mechanical configurations, and various material options. The casing material is a minimum of class 35 cast iron.
specifications
-
Capacities: Over 8,000 gpm (1,817 m3/h)
-
Head: Up to 675 feet (206 meters)
-
Pressure: Up to 510 psi
-
Horsepower: Up to 550 hp (410 kW)
-
Temperature: Up to 250°F (121°C)
-
Drives: Motors, engines, steam turbines, combinations
-
Liquids: Water, clear liquids
-
Materials: Cast iron, bronze fitted as standard. Other materials are available.
applications
- Water and other non-abrasive fluids
- From small, single-pump commercial installations to
- large, multi-pump municipal water supply systems
- Agriculture
- Industrial
- Building trade
- Energy
- Fire protection
- Municipal
- Process
PEERLESS

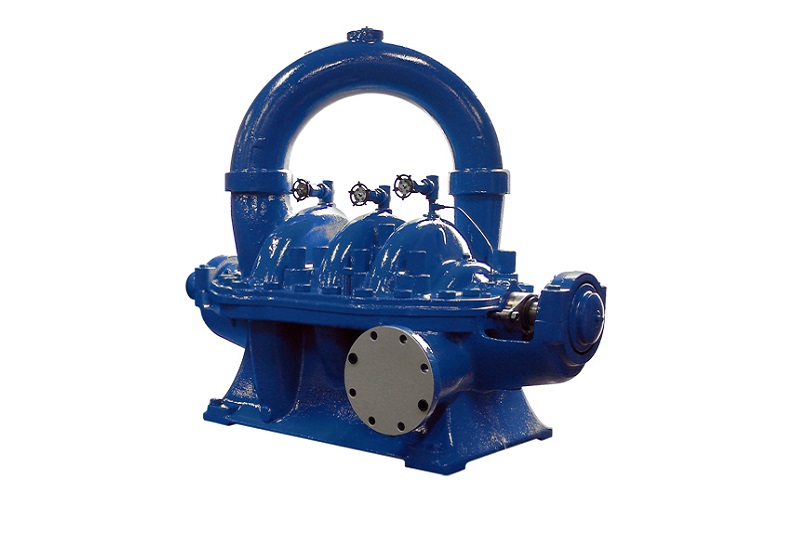

TU/TUT PUMP
The Peerless TU or TUT pump features a cast iron, bronze-fitted, multi-stage, horizontal split-case design. The Type TU pumps are designed with two stages, whereas the TUT pumps come in three, four, and five-stage configurations. The multi-stage pump casing material is a minimum of class 40 cast iron. Alternate volutes are reversed, balancing transverse pressures on running members. The bearing bracket supports are cast integral with the lower casing half for permanent alignment of bearings and all rotating parts. Bronze, renewable casing rings are doweled and shouldered in the casing. Cast bronze, enclosed type, single suction impellers are carefully machined and are dynamically balanced for vibration-free performance and longer bearing life.
specifications
- Capacities: Up to 6,000 gpm (1,636 m3/hr)
- Head: Up to 1,600 feet (488m )
- Pressure: Up to 700 psi (48.26 bar)
- Horsepower: Up to 1,300 hp (969 kW)
- Temperature: Up to 300°F (149°C)
- Drives: Motors, engines, steam turbines, combinations
- Liquids: Water and clear liquids
- Materials: Cast iron, bronze fitted as standard. Other materials are available.
applications
- Boosting
- Water Treatment
PEERLESS
F,C Pump

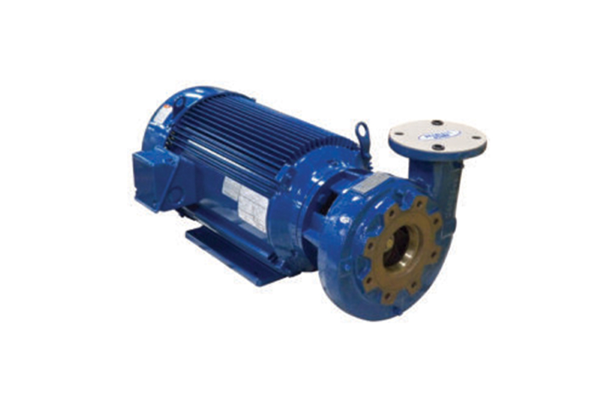

The Peerless F Series pumps are versatile, frame-mounted, end-suction pumps that are flexibly coupled to drivers and come equipped with coupling guards. The complete unit is mountable on a steel base, with an optional drip pan available.
The Peerless C Series features close-coupled pumps that are specifically designed for pump applications. They are paired with standard C-face JM or JP solid shaft ball-bearing motors, adhering to standards set by the Hydraulic Institute (HI) and the National Electrical Manufacturers Association (NEMA).
The impeller diameter is limited to not exceed 90 percent of the maximum impeller diameter that the case tongue or cut-water could accommodate, ensuring minimal hydraulic noise levels.
specifications
- Capacities: Up to 6,000 gpm (1,636 m3/hr)
- Head: Up to 1,600 feet (488m )
- Pressure: Up to 700 psi (48.26 bar)
- Horsepower: Up to 1,300 hp (969 kW)
- Temperature: Up to 300°F (149°C)
- Drives: Motors, engines, steam turbines, combinations
- Liquids: Water and clear liquids
- Materials: Cast iron, bronze fitted as standard. Other materials are available.
applications
- Boosting
- Water Treatment
- General circulating service
- HVAC applications
