process pumps
peerless

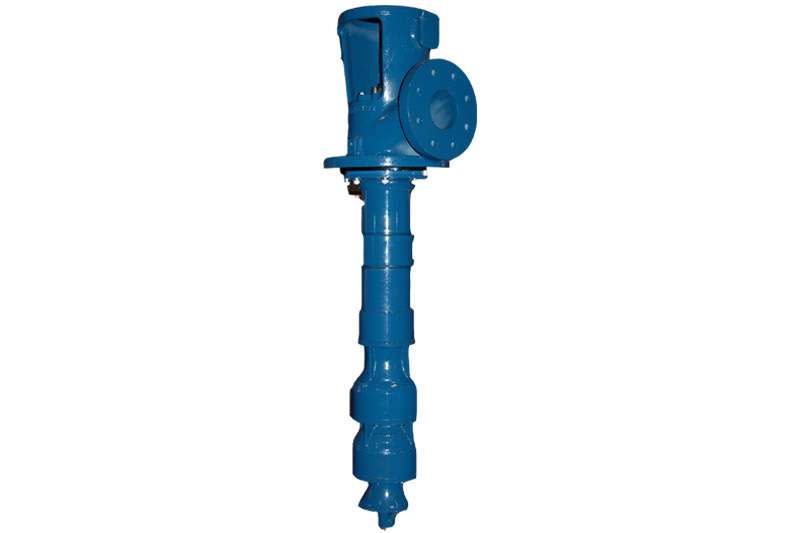

vertical turbine
Peerless Pump Vertical Turbines have stuffing boxes that are adaptable to various mechanical seal types and a range of API seal flush plans. Swing-type gland bolts, constructed of steel with 18-8 stainless steel nuts, secure the stuffing boxes. These boxes are designed to accommodate a minimum of five packing rings with a lantern ring, and split glands enable easy removal for re-packing.
To safeguard the carbon steel or optional heat-treated stainless-steel shaft through the stuffing box, replaceable bronze or optional hardened 416 stainless steel shaft sleeves are employed. These sleeves extend beyond the mechanical seal or packing glands for maximum shaft protection, sealed by O-rings. The grease-lubricated ball bearings are designed for an average life of 100,000 hours, with single-row radial ball bearings for inboard bearings and duplex angular contact ball bearings for outboard bearings (optional oil lubricated).
The pump and driver are affixed to a common steel base (optional drip rim) and connected by a flexible coupling, complete with a coupling guard. Alignment and bolting of the pump and driver are done before factory shipment.
The Vertical Turbine also includes a cast bronze, one-piece impeller.
specifications
-
Capacities: Up to 100,000 gpm
-
Head: Up to 2,500 feet
-
Pressure: Dependent on material
-
Horsepower: Up to 5,000 hp
-
Temperature: -60°F to 450°F (-51°C to 232°C)
-
Drives: Electric, right angle gear, combination motor gear, engine or steam turbine
-
Liquids: Water, butane, corrosives, etc.
-
Materials: Any machinable alloys suitable for the application
peerless
submsersible

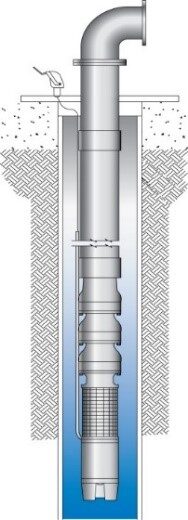

The Submersible Vertical Pump by Peerless Pump® is designed to manage an extensive spectrum of hydraulic and mechanical requirements, ensuring it achieves or exceeds the industry’s highest efficiency peak performance and maintains the lowest pumping costs. This pump comprises four fundamental components: (1) the pump bowl assembly, (2) column pipe, (3) discharge elbow at ground level, and (4) a submersible electric motor. Peerless Pump® provides a diverse selection of submersible pumps.
specifications
- Capacities: UP to 8,000 USGPM (1,818 m3/hr)
- Head: Up to 1,000 feet (305 meters)
- Pressure: Up to 627 psi, 43 bar
- Horsepower: Up to 500 HP (373 kW)
- Temperature: Up to 122°F, 50°C
- Drives: Electric submersible motors
- Liquids: Well water
- Materials: Cast iron bronze fitted, All iron, All bronze (B-700)
applications
- Well water
- Mine dewatering
- Irrigation
- Domestic Water
peerless

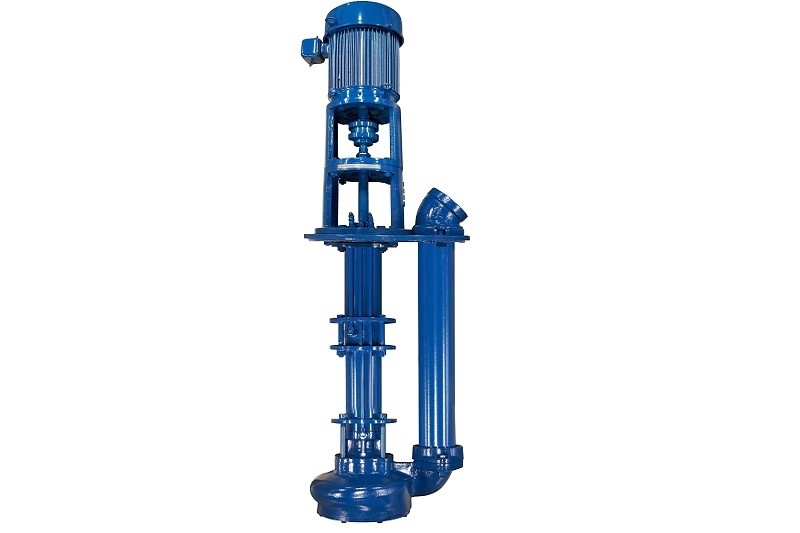

vcs – vertical sump
Vertical enclosed shaft pumps for sewage and wastewater.
The Peerless Type VCS non-clog pumps are distinguished by design features that enhance their unmatched quality and value, including:
- Precision registered fits at each joint, ensuring and maintaining straight shaft alignment.
- Robust sleeve-type shaft bearings and bearing housings, contributing to a sturdy and durable construction.
- Incorporation of expansion joints at crucial points, eliminating mechanical binding caused by temperature changes.
- A variety of options, accessories, and construction materials to guarantee the selection of the ideal pump for your specific application.
specifications
-
Capacities: Up to 900 gpm (204 m3/hr)
-
Head: Up to 110 feet (34 meters)
-
Pressure: Up to 55 psi (4 kg/cm2, 379 kPa)
-
Horsepower: Up to 30 hp (22 kW)
-
Temperature: Up to 110°F (43°C)
-
Drives: Vertical electric motors
-
Liquids: Sewage and non-corrosive liquids
-
Materials: Cast iron
applications
Recommended for pumping water-borne sewage, trash and waste, they are suitable for applications in:
-
Commercial Buildings: Motels, Office Buildings, Trailer & Mobile Home Parks
-
Public Buildings: Hospitals, Educational & Instructional Buildings, Parks & Playgrounds, Sewage & Water Treatment Plants
-
Industrial Plants: Food Processing Plants, Manufacturing Plants, Service Buildings
