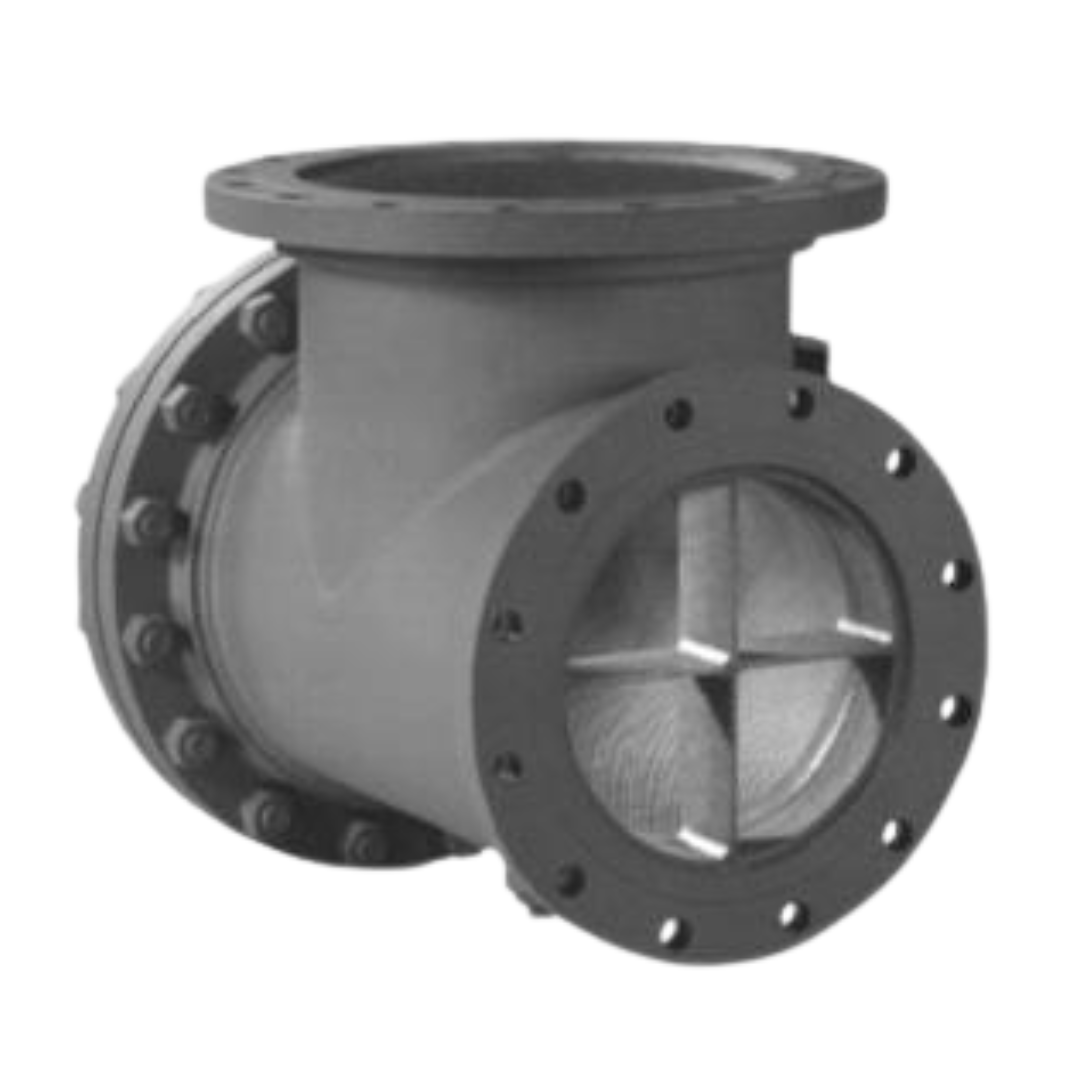

suction diffuser
SSI Fabricated FF Series Suction Diffusers provide an efficient solution for protecting pumps and other critical equipment from debris while helping promote smooth, uniform flow at the pump inlet. Featuring rugged fabricated construction and large diffuser screens, these units are engineered for demanding industrial applications and can be custom sized to meet specific system requirements.
SPECS
- Pressure Rating: Up to 740 PSIG
- Temperature Rating: Up to 800°F
- Filtration: Down to 40 microns
- Pressure Classes: ASME Class 150 and Class 300
- Materials: Carbon steel, stainless steel, and other materials upon request
- End Connections: Flat face, raised face, and buttweld
- Configurations: Long- and short-neck versions available
- Sizes: Custom fabricated to meet application requirements
performance
- Filtration down to 40 microns
- Pressure ratings up to 740 PSIG
- Temperatures up to 800°F
- Large diffuser screens
- Smooth, uniform flow
- Custom sizing and configurations
APPLICATIONS
SSI Fabricated Suction Diffusers are designed for demanding fluid-handling systems across a variety of industrial markets, including:
- Process Industry
- Power Generation
- Water and Wastewater
- Chemical Processing
- Oil and Gas
- Pulp and Paper
- Metals and Mining
