UV Systems
UV Systems technology provides effective and chemical-free disinfection by inactivating microorganisms like bacteria, viruses, molds, and pathogens. It eliminates organic and inorganic contaminants, including chlorine, ozone, and total organic carbon (TOC), making it ideal for applications where chlorine disinfection is unsuitable.
Key benefits include improved water taste, color, pH, and odor, no need for storing or handling toxic chemicals, effective inactivation of chlorine-tolerant pathogens, and enabling water reuse to support sustainability goals.
ETS-UV Disinfection
Generators

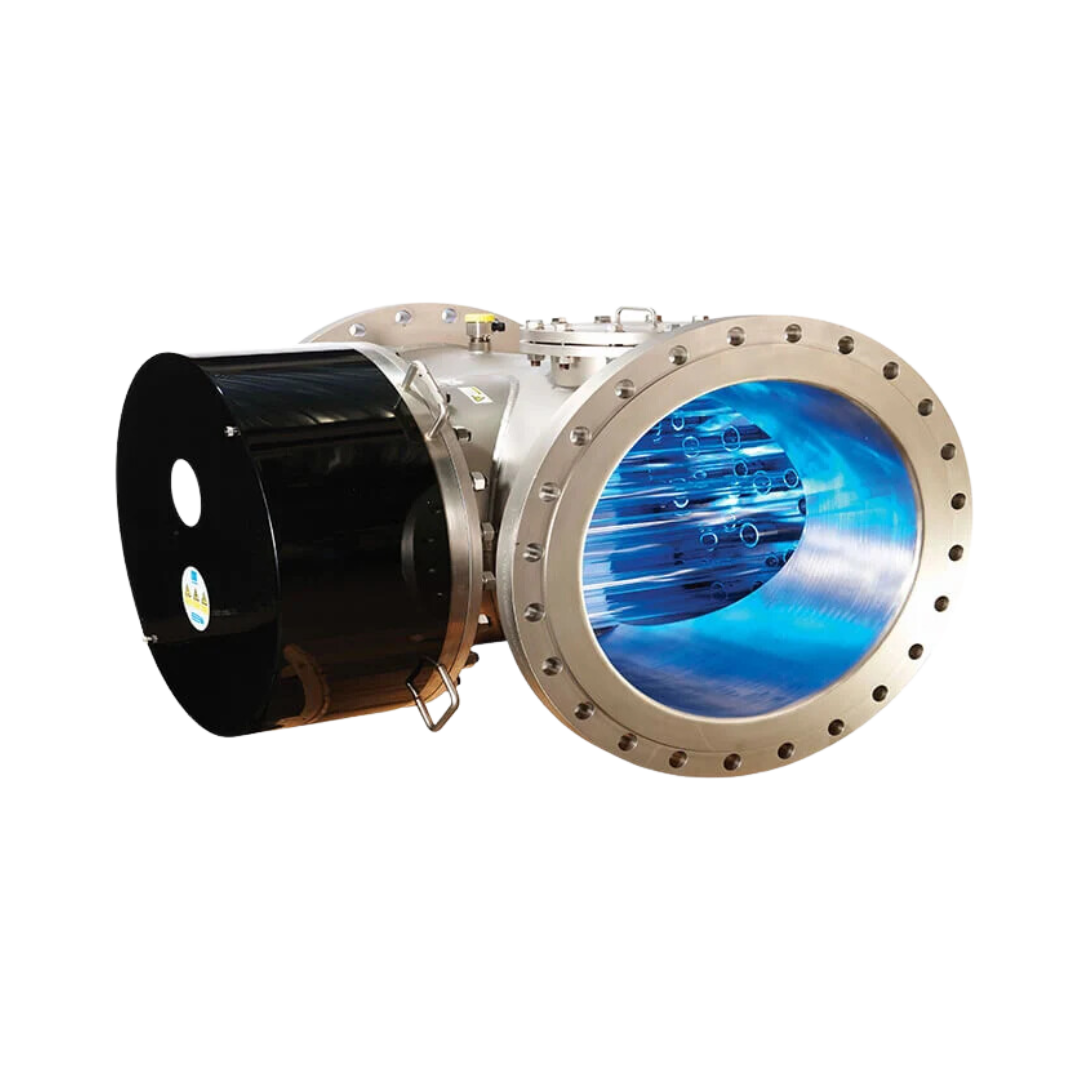

SW Model
The SW range features cutting-edge medium-pressure UV lamp technology, paired with specially designed in-line UV reactors for optimal flow distribution and hydraulic performance. These advanced UV systems deliver a state-of-the-art solution for diverse water treatment needs, with capacities ranging from 10 m³/h to over 2,000 m³/h, all within a compact, high-output design.
Benefits
- Significantly reduced maintenance requirements
- Single sided maintenance / access
- Quick release enhanced safety Twistlok™ Lamps
ETS-UV Disinfection
Generators

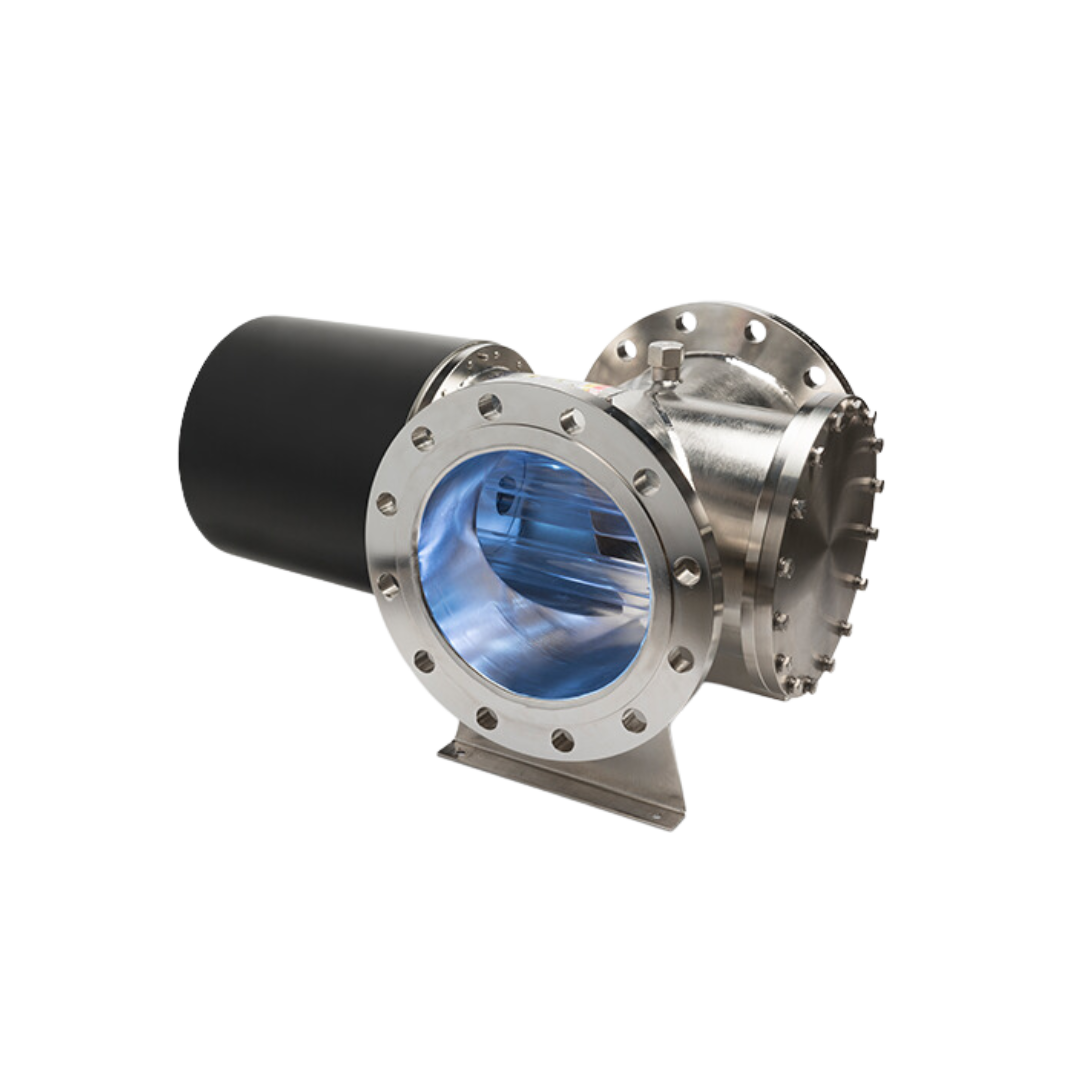

SX Model
The SX series incorporates the latest medium-pressure UV lamp technology and an efficient in-line chamber design, providing enhanced treatment capacity and flexibility for the eco-friendly UV disinfection process. This series is ideal for a variety of applications, including drinking water, industrial process water, oil and gas, and aquatics.
With specially designed in-line UV reactors, the SX series ensures optimal flow distribution and hydraulic performance. Offering state-of-the-art solutions for diverse water treatment needs, the SX series handles capacities ranging from 10 m³/h to over 5,000 m³/h in a single, high-output, compact UV system.
Benefits
- Significantly reduced maintenance requirements
- Single sided maintenance / access
- Quick release enhanced safety Twistlok™ Lamps
ETS-UV Disinfection
Generators

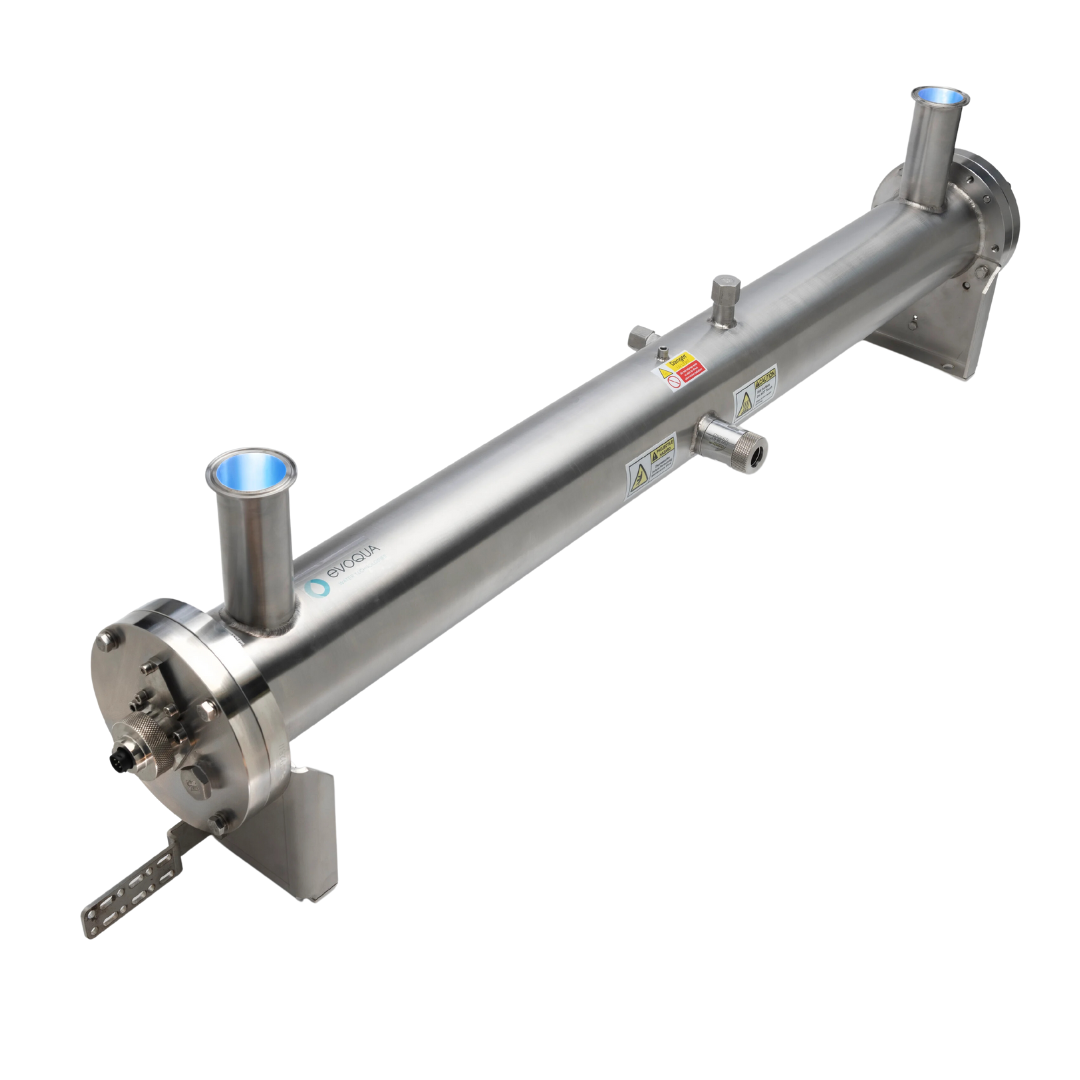

VX Model
Evoqua’s VX Range is designed for efficient, cost-effective disinfection, offering a variety of configurable options to meet specific customer needs.
Featuring advanced variable power control systems and the innovative Spectra 3 controller, the VX Range allows users to optimize power output based on application requirements while providing remote access to performance data to enhance operational efficiency. Tailored for industrial applications, the VX Mini and Midi models deliver affordable disinfection across various processes.
Benefits
- Increased production and uptime with easy
- Fast maintenance for improved safety and productivity
- Low cost of ownership due to reduced installation and maintenance time
- High-efficiency systems that ensure reliable water quality
- The system also incorporates the patent-pending TwistLok lamp configuration, AT-900 UV intensity system, and Spectra 3 control system for added performance.
ETS-UV Disinfection
Generators

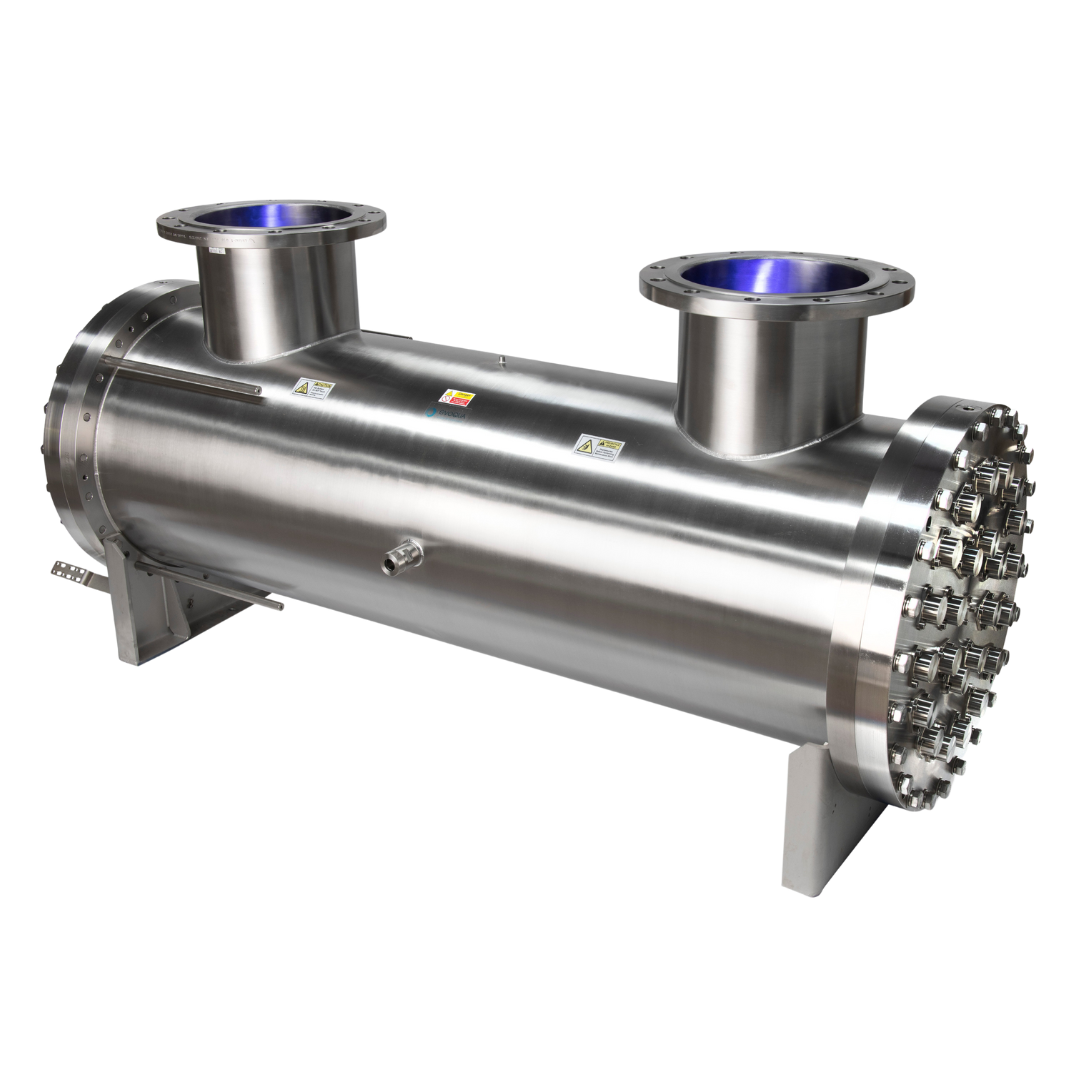

VT TOC
Evoqua’s VT TOC Range is engineered for exceptional TOC reduction in ultrapure water (UPW) processes, specifically designed for the electronics and power industries.
With advanced variable power control systems and the Spectra 3 controller, the VT TOC Range enables users to optimize power output according to application needs and provides remote access to performance data, ensuring enhanced operational efficiency.
Benefits
- Cost-effective treatment across various processes
- It boosts production and uptime with quick, easy maintenance for improved safety and productivity
- Featuring low installation and maintenance costs, high-efficiency systems ensure reliable water quality
- Benefits include the patent-pending TwistLok™ lamp configuration, NIST-calibrated UV 254 sensor, and the Spectra 3 control system
ETS-UV Disinfection
Generators

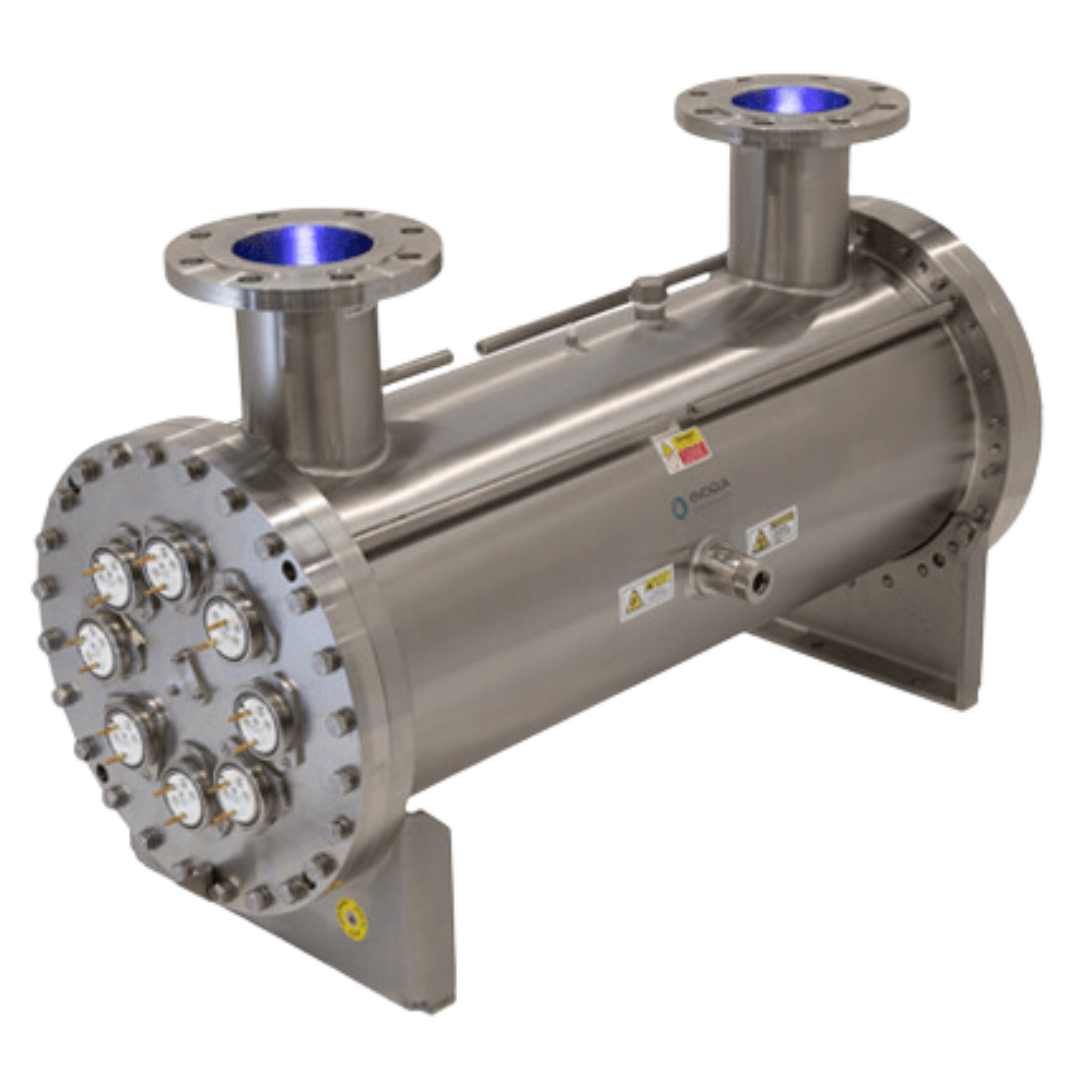

VXM Range
Evoqua’s VXM range, part of the ETS-UV family, provides superior treatment for industrial water with low UV transmittance or high dosage needs. This eco-friendly, chemical-free solution is customizable for applications in food and beverage, pharmaceuticals, healthcare, electronics, and aquaculture.
Benefits
- Efficient and enhanced power control
- High performance lamps
- Enhanced performance monitoring by sophisticated control system
- Suitable for high doses (>1000mJ/cm2) and low UVT’s (<45% UVT)
- Built in safety features & simple maintenance
- MODBUS or PROFIBUS connectivity
ETS-UV Disinfection
Generators

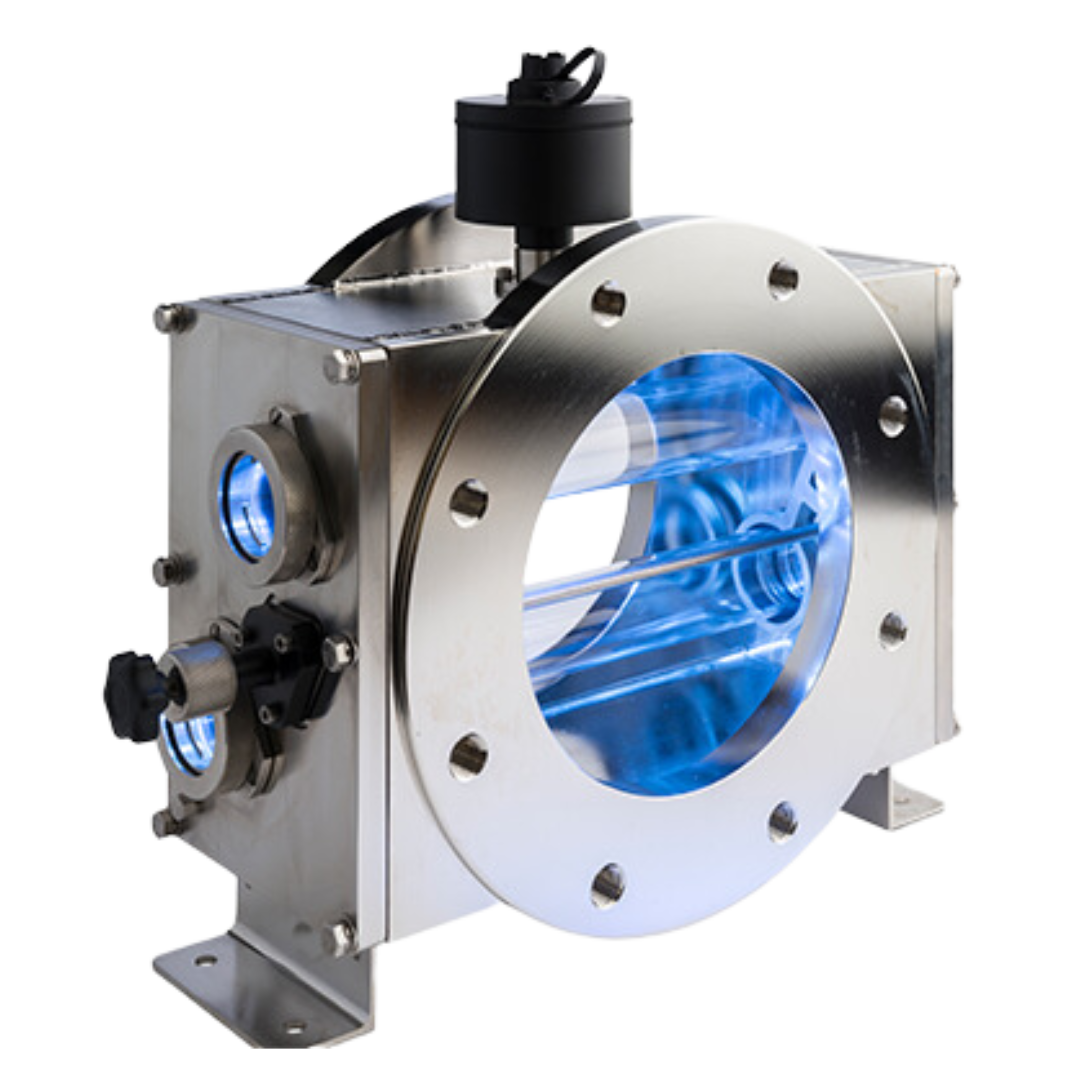

Wafer
The Wafer® system is a next-generation medium pressure UV solution, offering the most compact design available. About a third the size of comparable systems, it requires minimal maintenance space and is easy to install or retrofit into tight plant rooms.
Despite its compact size, the Wafer’s hydraulically optimized reactor and advanced polychromatic lamp technology ensure high efficiency and performance, achieving at least a 99.9% reduction of chlorine-resistant microorganisms like Cryptosporidium and Giardia, making it ideal for drinking water applications.
Benefits
- Chemical free, green disinfection solution
- 9,000 hour lamp life
- Automatic power stepping 100% – 30% power
- Hydraulically optimised low head-loss design
- High disinfection efficiency – 1 to 5 log
- Validated doses from 12 mj/cm2 RED to 120 mj/cm2 RED or more
- Flows up to 5,000m3/hr in a unit with an installed length of around 30cms
Applications
- Treatment of Drinking Water, Process Water, Aquaculture and industrial processes requiring high volumes of disinfected water.
